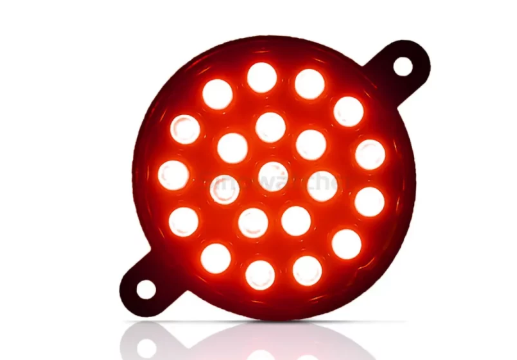

The 52mm RYG Mini Traffic Light Pixel Cluster is a compact, high-performance LED module designed for traffic signals, smart city applications, pedestrian crossings, and vehicle guidance systems.
Featuring Red, Yellow, and Green (RYG) LED clusters in a 52mm mini format, it provides high-brightness illumination while maintaining energy efficiency.
Its small size allows easy integration into traffic cabinets, signal heads, and experimental or miniature traffic systems.
Red, Yellow, and Green LED clusters provide clear signals visible from a distance, ensuring effective traffic guidance.
52mm module ideal for tight spaces, retrofitting, or integration into advanced traffic management systems.
Low power consumption with high-brightness LEDs ensures reliable operation and reduced energy costs.
High-quality PC lens and heat-resistant housing provide long-term stability and impact resistance.
Mountable in traffic heads, signal clusters, or custom housings with standard connectors.
LED modules rated for 50,000+ hours, reducing maintenance and replacement frequency.
Suitable for:
Urban traffic lights
Pedestrian crossings
Highway guidance systems
Intelligent traffic control systems
Simulation or miniature traffic models
Can be integrated into IP-rated housings for outdoor use, resistant to dust and moisture.
LED Cluster Size: 52mm diameter
LED Colors: Red / Yellow / Green (RYG)
LED Type: High-brightness SMD LEDs
Power Supply: DC 12–24V
Lifespan: ≥50,000 hours
Operating Temperature: -20°C to +60°C
Mounting: Panel or signal housing integration
Material: PC lens + heat-resistant housing
Control: Compatible with standard traffic controller outputs
