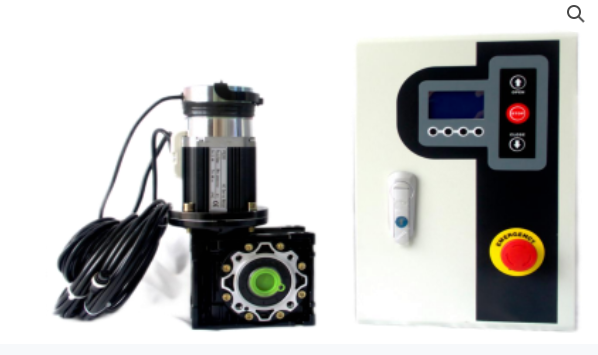

The 0.75kW Roll-Up Door Motor is a powerful and durable motor system designed for industrial and commercial rolling shutter doors.
It ensures smooth, quiet, and reliable operation, even in high-frequency applications such as warehouses, factories, and garages.
Built with high-quality copper windings, electromechanical braking, and thermal overload protection, this motor delivers consistent torque and long service life.
0.75kW motor delivers strong torque for medium to large-size roll-up doors.
Ensures fast lifting and smooth operation without jerks or vibration.
Compatible with manual switches, remote control, and safety sensors.
Can be easily integrated with backup battery units for power failure operation.
Equipped with high-grade steel gears and heat-resistant copper coil for long-term durability.
Ideal for continuous, heavy-duty use.
Includes electromagnetic brake, thermal overload protection, and manual chain system for emergency use.
Ensures safe stopping and reliable door positioning.
Compact design allows for simple mounting on door shafts.
Minimal maintenance required, reducing downtime.
| Parameter | Specification |
|---|---|
| Motor Power | 0.75 kW |
| Voltage | 220V / 380V AC, 50Hz |
| Rated Torque | 120 – 150 Nm |
| Door Height Supported | Up to 6 meters |
| Lifting Capacity | 300 – 600 kg (depending on model) |
| Speed | 4.2 rpm – 5.8 rpm |
| Phase | Single-phase / Three-phase |
| Brake Type | Electromagnetic automatic brake |
| Control Type | Push button / Remote / Manual chain |
| Protection Level | IP54 |
| Working Temperature | -20°C ~ +60°C |
Industrial rolling shutter doors
Warehouse and factory entrances
Commercial shops and garages
Loading bays and logistics centers
